Mono-block et bi-block sleeper laying beam model 159-5
- This hydraulic sleepers laying beam is designed to grab mono-block and bi-block sleepers
- Compact design equipment
- Easy adjustments based on crossing type and travel distance
- Equipped with HARDOX jaws with protective pads
- Safety valves on each cylinder.
- Safety device in charge
- Reduced maintenance
- Can be used for handling small track panels
Technical data :
- Weight without rotator : 780 kg
- Max Load : 3300t
- Max sleeper weight : 460 kg
- Mini sleeper width : 280 mm
- Max sleeper distance : 750mm

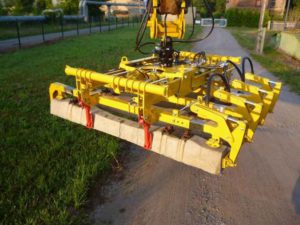

Sleeper laying beam model PTT 410
- The hydraulically operated sleeper laying beam has been developed to grab and place 4 sleepers on track bed in an effective way.
- The device is foreseen for excavators with a weight category of more than 16000 kg.
- Adjustable sleeper distance.
Technical data :
- Weight without rotator : 1 000 kg
- Max sleeper weight : 350 kg
- Mini sleeper width : 240 mm
- Max sleeper distance : 750mm
- Max pressure : 350bar

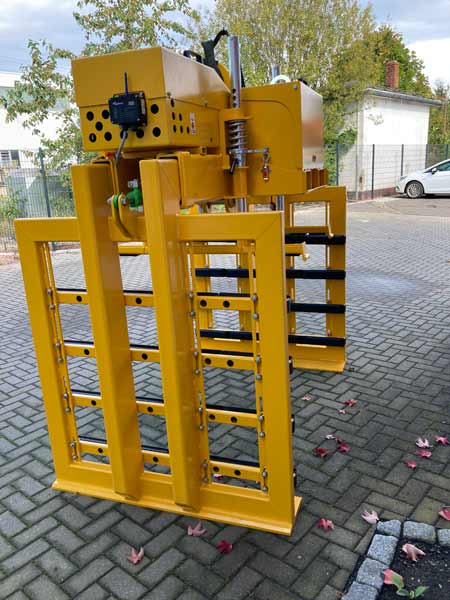

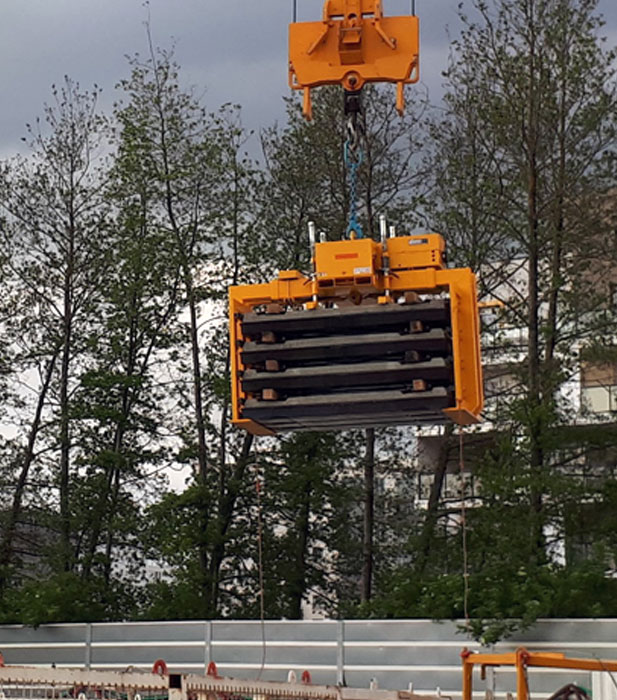

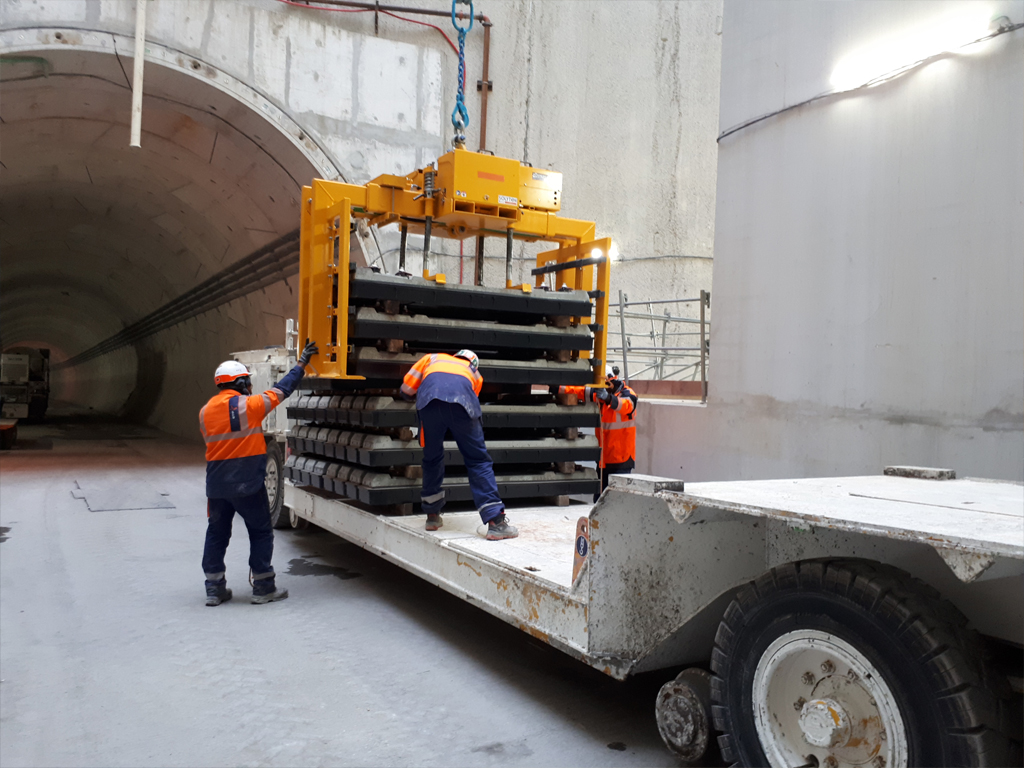

Sleeper handling for bundles of railway
- This hydraulic sleeper handling is intended for handling 4 bunch of 4 sleepers or 4 bunch of 3 sleepers
- This equipment is designed for use with a crane in complete safety for operators
- It is adjustable according to the type of sleepers (length, width and height)
- It has an on-board hydraulic unit and maintenance-free gel batteries
- The slipper handling is radio-controlled to facilitate the work of the operators
- Include CE certificate and lifting certificate.
Technical data :
- Weight : 1 750 kg
- width: 1 200 mm
- height : 2 120-3 460 mm
- lenght : 2 050 – 3460 mm
- Max sleeper weight : 6T
- Mini sleeper width : 1 800 – 2 800 mm

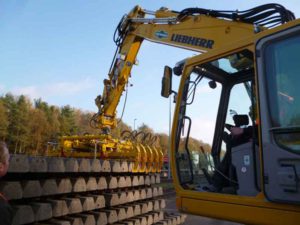

Sleeper handling for bundles of railway
- The hydraulically operated sleeper laying beam has been developed to grab and place 5 sleepers on track bed in an effective way.
- The device is foreseen for excavators with a weight category of more than 16000 kg.
- Adjustable sleeper distance.
- Load safety device.
Technical data :
- Weight without rotator : 1 100 kg
- Max weight of sleepers : 350 kg
- Mini sleeper width : 240 mm
- Max sleepers distance : 750 mm
- Max pressure : 350 bar

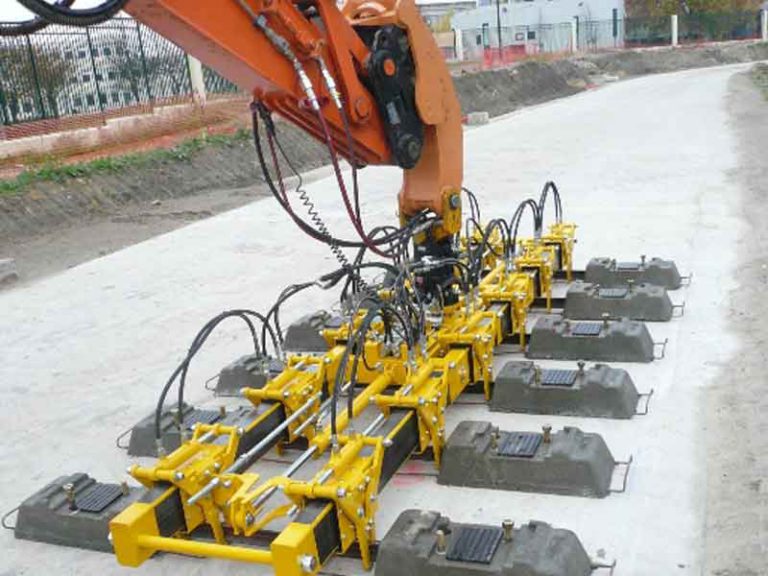

Sleeper laying beam model PTT 600
- This slepper laying beam is for handling 6 bi-block sleepers, sleepers are gripped on the metallic bars.
- Sleeper of pair level are taken first, then sleepers of odd level.
- Distance between sleepers is adjusted by bolts reverse thread.
- Frame is fixed, grips being movable.
- Load safety device.
Technical data :
- Weight without rotator : 700 kg
- Max sleeper weight : 350 kg
- Mini sleeper width : 280 mm
- Max sleeper distance : 800 mm
- Max pressure : 350 bar

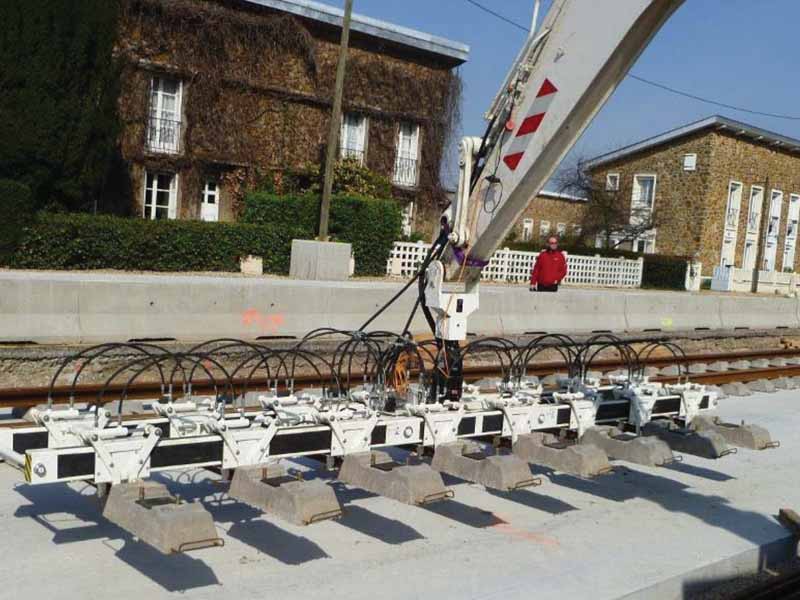

Sleeper laying beam model PTT 800
- This slepper laying beam is for handling 8 bi-block sleepers, sleepers are gripped on the metallic bars. Sleeper of pair level are taken first, then sleepers of odd level.
- Distance between sleepers is adjusted by bolts reverse thread.
- Frame is fixed, grips being movable.
- Load safety device.
Technical data :
- Weight without : 920 k
- Max sleeper weight : 350 k
- Mini sleeper width : 280 mm
- Max sleeper distance : 800mm
- Max pressure : 350 bar

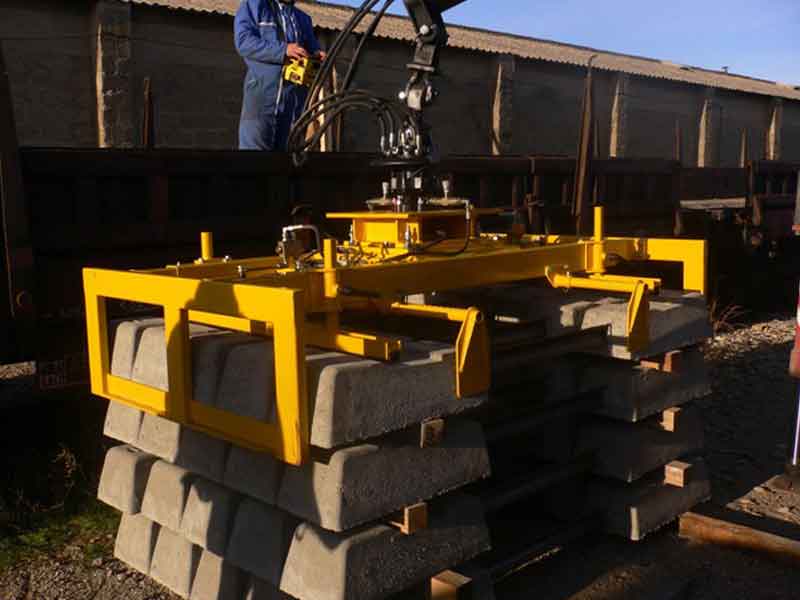

Sleeper laying beam model PMT4
- This sleeper laying beam is for handling 4 wooden or concrete sleepers. Adjustable according to sleeper length and width.
- Compact unit allowing handling on a truck.
- Any number of sleepers on request.
Technical data :
- Weight : 650 kg
- SWL : 1 400 kg
