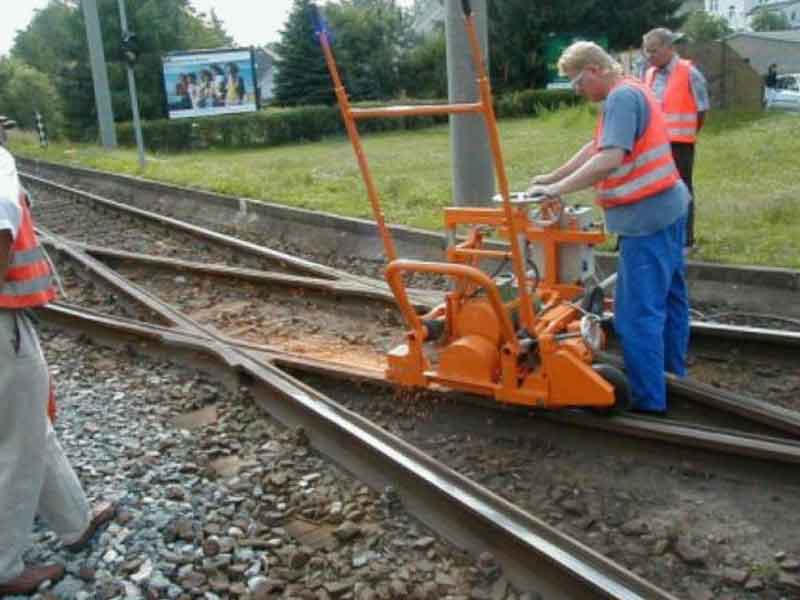

Turnout grinder model V135
- This electric grinder facilitates the operator’s work with self-propelled capacity that can reach 5 km/h.
- It is equipped with 230 x 35 mm grinding discs and cup stones.
- It is suitable for grinding rails, grooved rails and switches.
- It allows safe work and can be taken out of the way in 15 sec.
- Equiped with lighting set, off-tracking rubber wheel.
Technical data :
Weight: 240 kG
Rotation speed: 5 000 tr/min
Electric connection: 7.9 kVA / 400 V
Speed up to: 5 km/h
Track gauge: 1000 mm – 1500 mm
Cup stones: 100*110 mm – or disk 230 * 6 mm
Bore: 22 mm or 25 mm

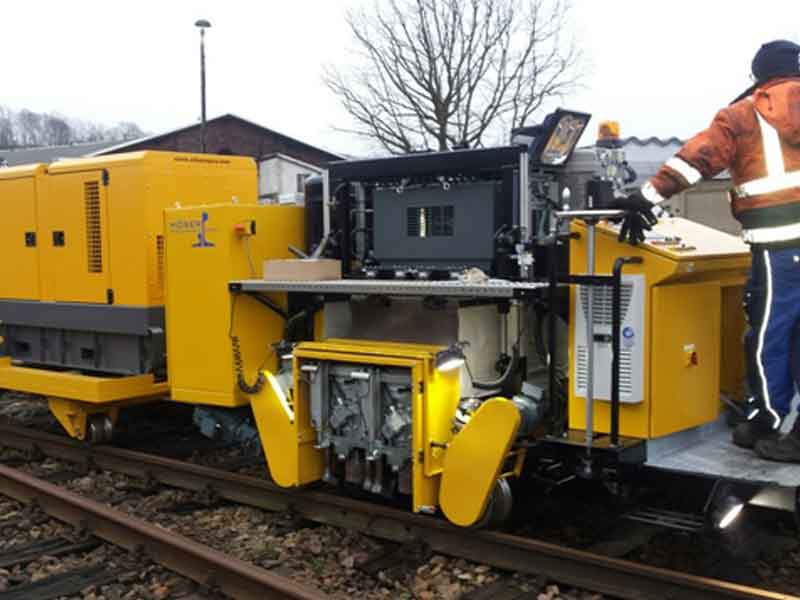

Grinding trolley model V 228
- This grinding trolley enables clean and fast work for the correction and reprofiling of railway tracks.
- It is equipped with 4 grinding units (max 8 stones) cup stones and / or disk stones, it has a powerful integrated suction system for a sustained work rate.
- It can be put on/off tracking within 3 mn
Technical data :
Weight: 3 050 (+2 520) kg
Size: 3 754 (7 350) x 1 930 x 1 920 mm
Max grinding power: 7,5/11 kW or 11/15 kW
Max speed: 12 km/h
Working speed: 0-5 km/h.
Diesel electric – power system: 80 kVA
Dust collection system: 2 x 3000 m3/h – Automatic pulsing
Adjustable gauge: 1000 – 1500 mm

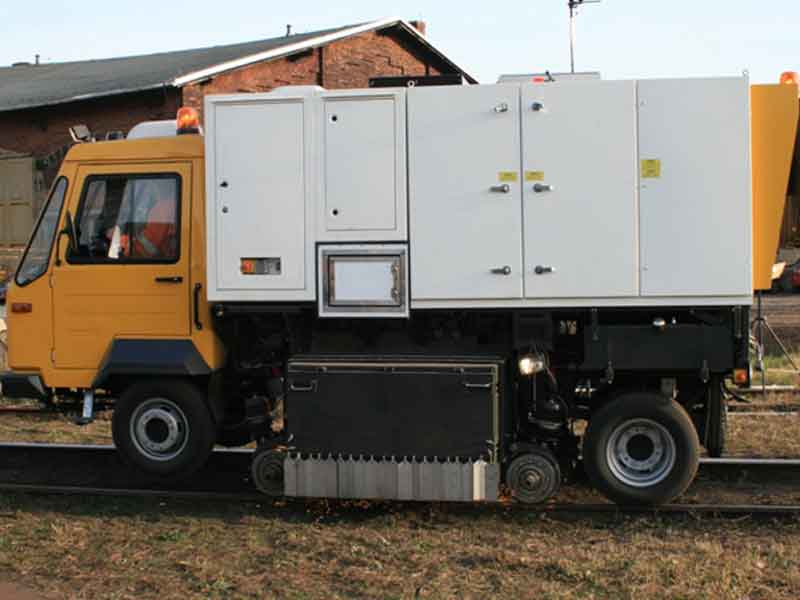

Roadrail grinder model V149
- This innovative model is our latest development of a compact grinding vehicle.
- It is particularly suitable for rail reprofiling, correction of corrugation and grinding of rolling crust.
- This road-rail grinding vehicle is equipped with 6 grinding units (6 to 10 stones) cup stones and / or disk stones 6
- It can be put on/off tracking within 3 mn
Technical data :
Weight: 6500 kg
Size: 4845 x 1900 x 2450 mm
Max grinding power: 11/15 kW
Max speed: 35 Km/h
Working speed: 0-5 km/h
Diesel electric power system: 120 kVA
Dust collection system: 2×4000 m3/h – Automatic pulsing
Adjustable gauge: 1000 – 1500 mm

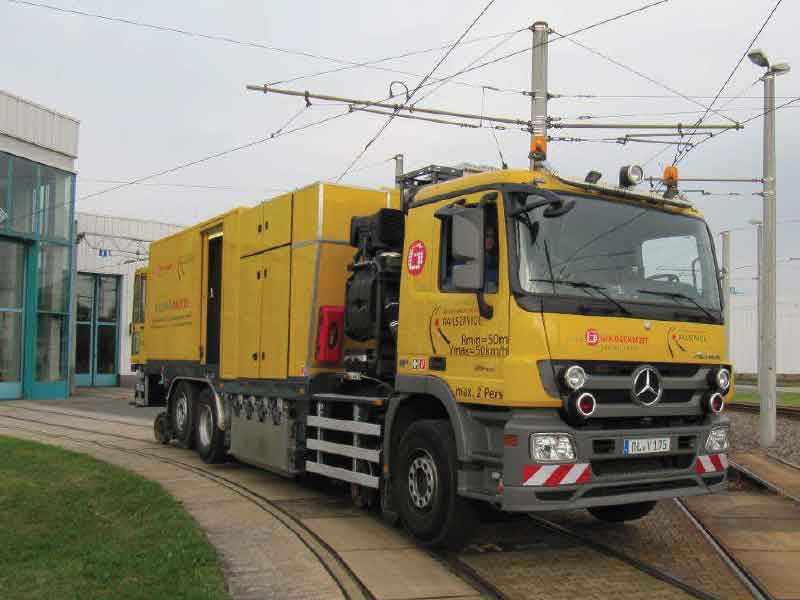

Roadrail grinder model RV195
- Base vehicle: Mercedes Benz Actros 28t
- 8 grinding stones
- Rail chassis with 2 bogies
- 3 axles
- Adjustable gauge 1000-1668mm
Technical data :
Weight: 27500 kg
Size: 12000 x 2525 x 3550/3650 mm
Max. road speed: 80km/h
Max. Rail speed: 50km/h
Grinding power: 1/15kW electric
Max grinding power: 11/15 kW
Max speed: 35 Km/h
Working speed: 0-5 km/h
Diesel electric power system: 120 kVA
Dust collection system: 2×4000 m3/h – Automatic pulsing
Adjustable gauge: 1000 – 1500 mm
